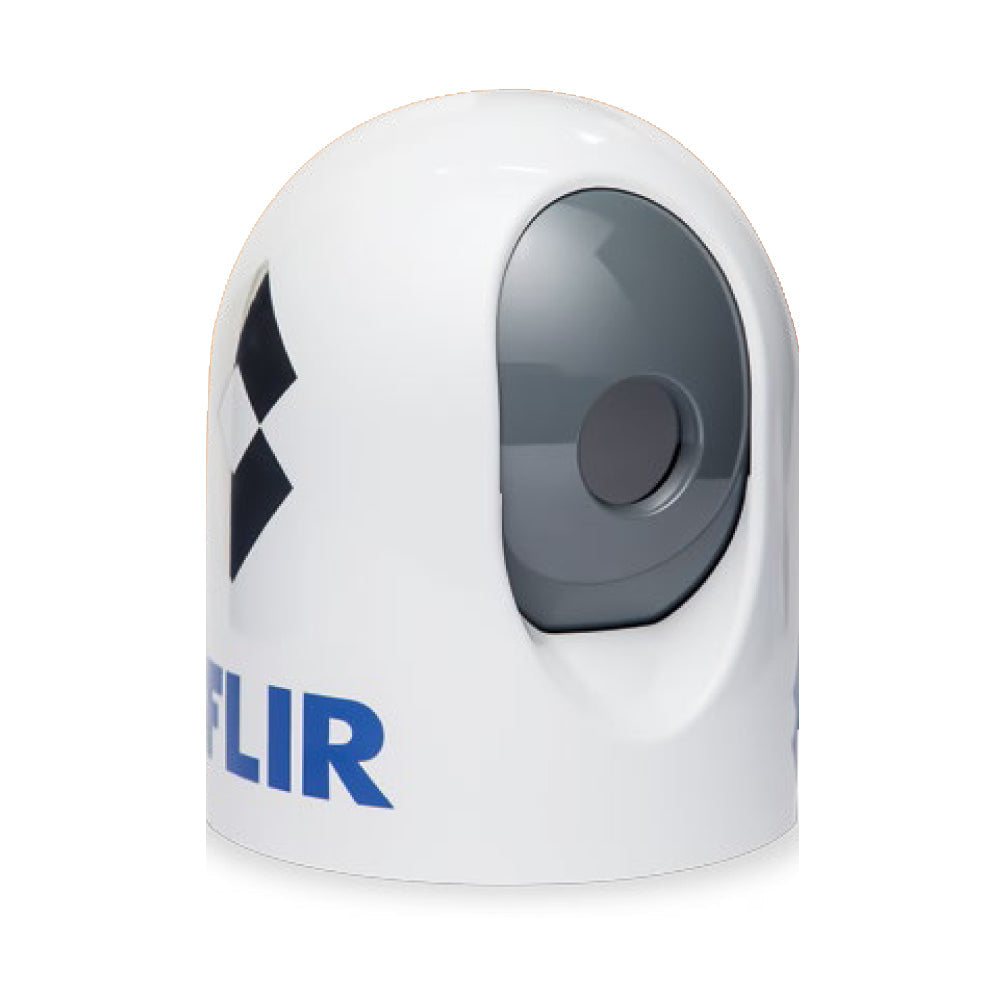

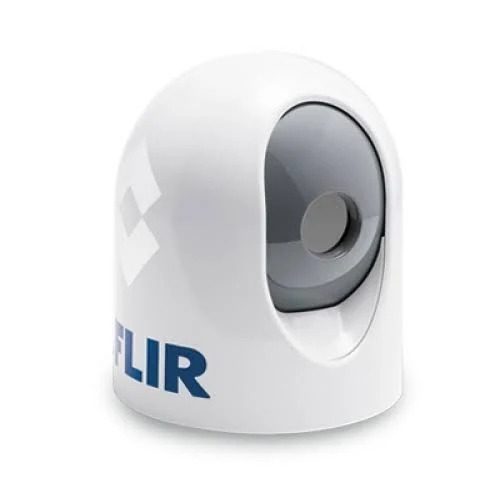

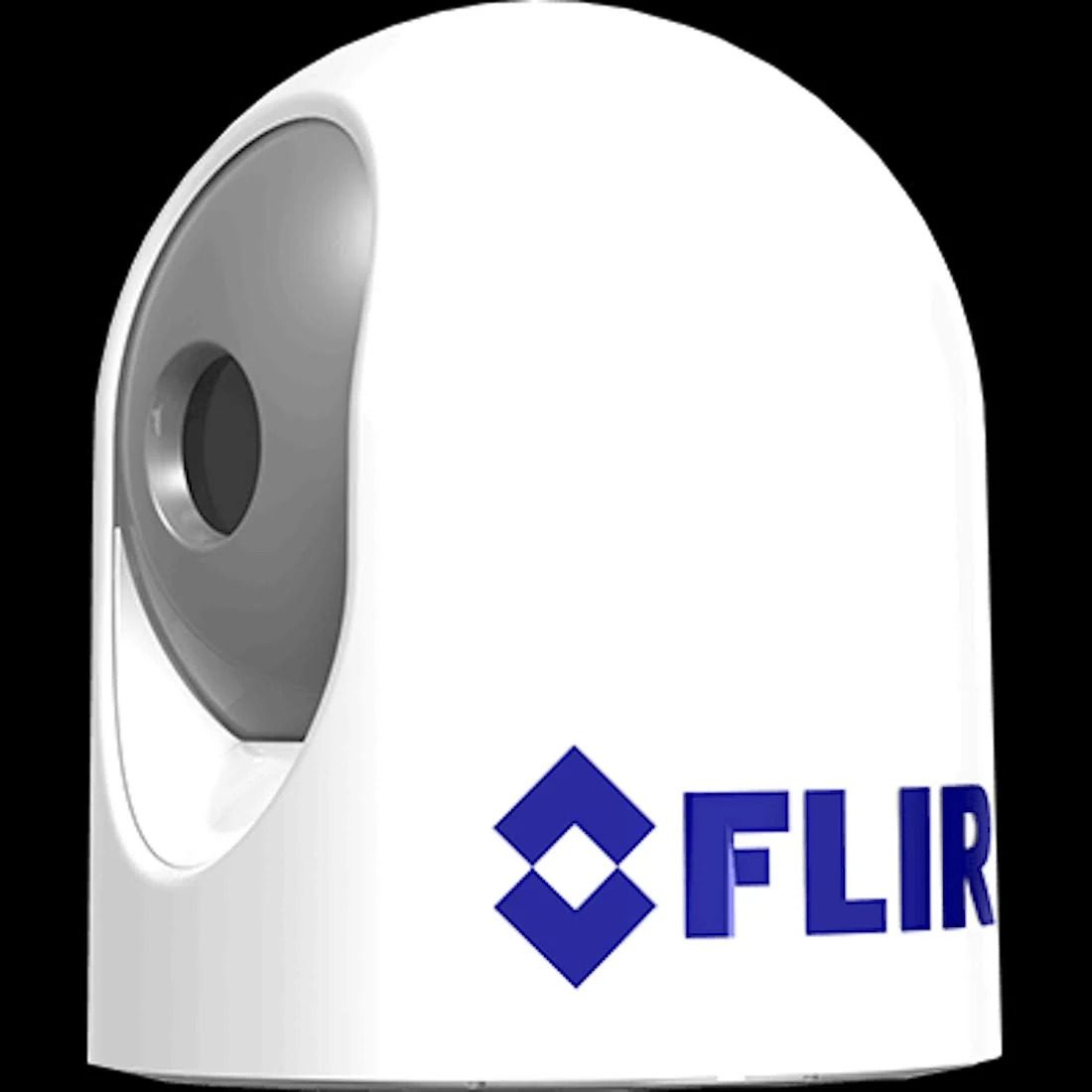

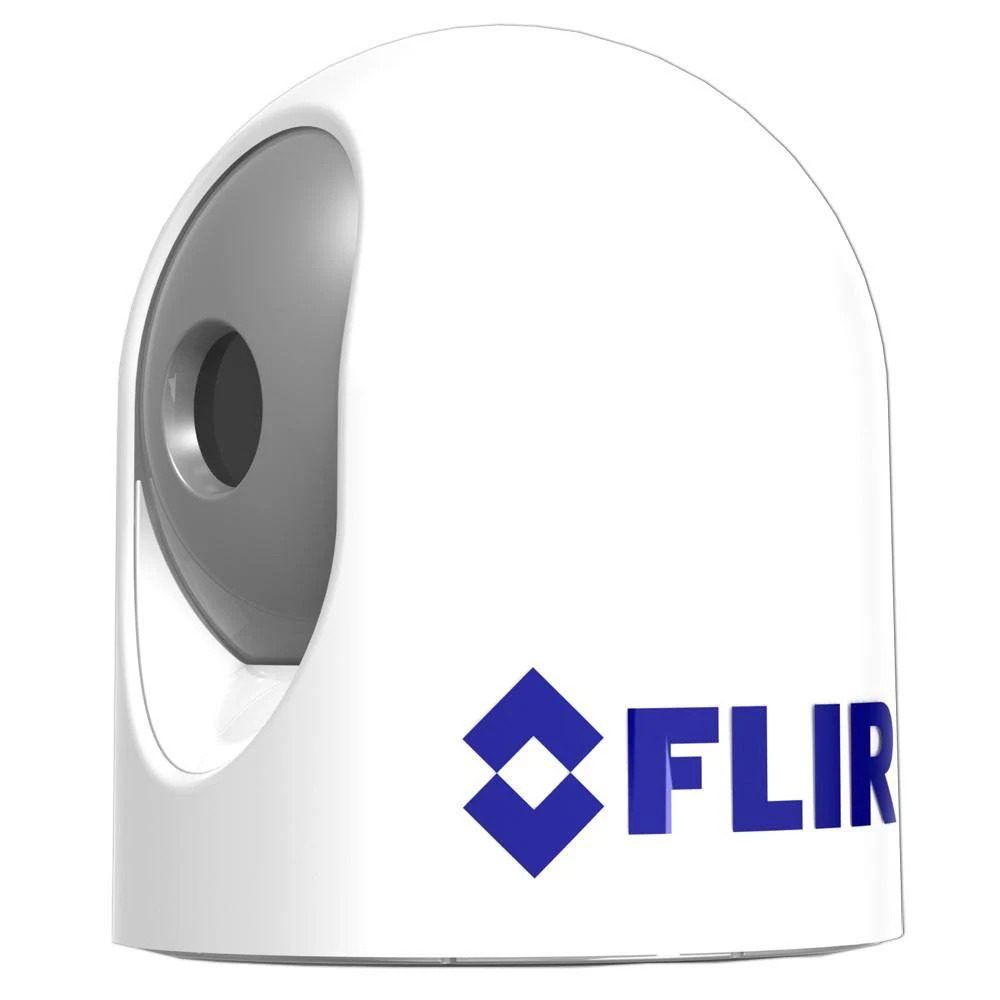

FLIR MD625 Compact Fixed View Marine Thermal Camera
Model: 432-0010-03-00- The MD625's 640 x 480 resolution thermal sensor reveals vessels and obstacles in total darkness and even midday glare.
- A compact, all weather, water proof enclosure provides easy mounting.
- The MD625 is Ethernet-enabled for simple integration into your vessel's existing electronics.
The MD-Series is an affordable, compact fixed-mounted thermal night vision system that helps with steering around obstacles, collision avoidance, and finding people in the water at night. Simple to mount and easy to integrate into your existing electronics, MD-Series outputs standard analog video that can be easily displayed on almost any monitor at the helm or other locations on the vessel.
SpecificationsPan & Tilt Coverage | Pan: ±30° per key Tilt: +34°, -27° (Locked in at Installation) |
Size | 6" dia. 7" ht. |
Standard Package | Camera Head with ~5"of Cable, Analog Video, and Ethernet (PoE powered device); Operator Manual CD |
CONNECTIONS & COMMUNICATIONS | |
Construction Type | F-type BNC with BNC-to-RCA adapter included for video out |
Video Output | NTSC or PAL, 30 Hz or <9Hz |
ENVIRONMENTAL | |
Automatic Window Defrost | Standard at Power-Up |
EMI | IEC 60945 |
Lightning Protection | Standard |
Operating Temperature Range | -25°C to +55°C |
Salt Mist | IEC60945 |
Sand & Dust | Mil-Std-810E |
Shock | 15 g vertical, 9 g horizontal |
Storage Temperature Range | -40°C to +85°C |
Vibration | IEC 60945; MIL-STD-810E |
Water Ingress | IPx6 |
Wind | 100 knot (115.2 mph) |
IMAGING & OPTICAL | |
Field of View | 25° 20° (NTSC) |
Focal Length - Thermal | 25 mm |
Thermal Resolution | 640 x 480 |
POWER | |
Power Consumption | 4.8 W nominal; 12.5 W max |
Power Requirements | PoE injector required per IEEE 802.3af |
THERMAL IMAGING | |
Detector Type - Thermal | 640 480 VOx Microbolometer |
E-Zoom - Thermal | 2 , 4 |
Field of View - Thermal | 25° x 20° |
Image Processing - Thermal | FLIR Proprietary Digital Detail Enhancement |
What's in the Box:
- MD-625 Camera Unit
- O-ring for base (Part Number AS568-251)
- 7.7 meter (25-foot) double-shielded low smoke zero halogen (LSZH) Ethernet cable
- 7.7 meter (25-foot) coaxial cable for video output
- FLIR PoE injector (Part Number 4113746)
- RJ45 weatherproof coupler (Part Number 4115028) and various other video adapters
- Female-to-female F-type video connectors (Part Number 4115330)
- Mounting hardware kit that includes six M6 x 60 stainless steel-threaded studs with washers, nylock nuts, and acorn nuts, for attaching the MD-Series camera body
- Zip ties for use during installation
- MD-Series documentation package
Brand | FLIR |
---|---|
descr_2 | 640X480 Resolution 30Hz |
PROP 65 Note | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
Condition | New Unit |
Selection Guide | FLI43200100300_SelectionGuide.pdf |
---|---|
Flush Mount Template | FLI43200100300_FlushTemplate.pdf |
Install Manual | FLI43200100300_InstallationManual.pdf |
Owners Manual | FLI43200100300_OwnersManual.pdf |
